NEW QUESTION # 45
A new array is directly connected to a host with Direct Attach Copper (DAC) cables. The link does not come up.
Which document can be used to help identify the issue?
- A. FlashArray Transceiver and Cable Support article
- B. The Port Usage and Definitions article
- C. The FlashArray User Guide
Answer: A
Explanation:
When physical links fail to establish-especially when using Direct Attach Copper (DAC) cables or Twinax-the most common culprit is a hardware compatibility mismatch. Pure Storage arrays have specific requirements for optics and cabling to ensure optimal signal integrity and performance.
The FlashArray Transceiver and Cable Support article (available on the Pure Storage Support portal) is the authoritative, verified resource for this scenario. It provides a comprehensive, constantly updated compatibility matrix detailing exactly which vendor DAC cables (e.g., Cisco, Brocade, Arista) and transceivers are officially validated and supported for use with specific FlashArray models and port types. If an unsupported DAC cable is used, the switch or host bus adapter (HBA) on the array might simply refuse to bring the link up.
Here is why the other options are incorrect for this specific issue:
The FlashArray User Guide (A): This guide is excellent for day-to-day administration (volume creation, host grouping, etc.) but is too broad to contain granular, constantly updating hardware compatibility matrices for specific cables.
The Port Usage and Definitions article (C): This document explains the logical and physical purpose of the ports on the back of the controllers (e.g., defining which ports are used for management, replication, or host connectivity), but it does not dictate hardware transceiver or cable interoperability.
NEW QUESTION # 46
What is unified storage for Pure?
- A. FlashArray runs both iSCSI and Fibre Channel (FC) protocols.
- B. FlashArray runs both Block and File level protocols.
- C. FlashArray runs both NFS and SMB protocols.
Answer: B
Explanation:
Defining Unified Storage: In the storage industry, "Unified Storage" refers to a single storage platform that can simultaneously serve data over both block-level and file-level protocols.
The Pure Storage Approach: Historically, FlashArray was a high-performance block-only array. However, with the introduction of FlashArray File Services, Pure transitioned to a unified architecture. This means the same hardware (FlashArray//X, //C, or //XL) and the same management interface (Purity) handle both types of workloads.
Protocol Support:
Block Protocols: Fibre Channel (FC), iSCSI, and NVMe-over-Fabrics (NVMe-oF).
File Protocols: NFS (Network File System) and SMB (Server Message Block).
Why this is "Unified": * Shared Pool of Resources: Unlike older legacy systems that used "file gateways" or separate hardware heads for NAS, Pure's unified storage shares a single global pool of flash memory and deduplication metadata.
Ease of Management: Administrators don't need to manage two different systems. You can create a Volume (Block) or a File System (File) from the same "Add" menu in the GUI.
Why Options A and B are incorrect: * Option A only describes the File side of the equation.
Option B only describes the Block side of the equation.
Only Option C accurately captures the combination of both paradigms, which is the definition of "Unified."
NEW QUESTION # 47
How is SAN Time measured?
- A. Average time, measured in milliseconds, that an IO request spends waiting to synchronize to the peer array.
- B. Average time, measured in milliseconds, that an I/O request spends in the array waiting to be served.
- C. Average time, measured in milliseconds, required to transfer data between the initiator and the array.
Answer: C
Explanation:
Understanding Total Latency: In a FlashArray environment, total latency as seen by the host application is the sum of several components. Pure Storage breaks this down into Array Time and SAN Time to help administrators pinpoint where performance bottlenecks exist.
SAN Time Definition: SAN Time represents the latency introduced by the network infrastructure between the host (initiator) and the FlashArray (target). This includes the time spent traveling across Fibre Channel or Ethernet switches, cables, and host bus adapters (HBAs). It is calculated by taking the total round-trip time measured by the host and subtracting the time the FlashArray spent processing the I/O.
Metric Breakdown: * Array Time: The time the FlashArray takes to process the I/O once it hits the front-end ports (Option C describes internal array time).
SAN Time: The transit time for the request to reach the array and the response to return to the host (Option A).
Wait Time: In ActiveCluster environments, there is also "Mirror Latency," which is the time spent synchronizing data to a peer array (Option B).
Troubleshooting Value: If a user reports high latency but the FlashArray GUI shows very low Array Time, the administrator can look at the SAN Time metric. A high SAN Time indicates an issue with the fabric, such as a failing SFP, a congested switch port, or oversubscribed ISLs (Inter-Switch Links).
NEW QUESTION # 48
What is the purpose of a Protocol Endpoint volume?
- A. It allows for volumes of the same name within host groups.
- B. It is required to set Host Protocol.
- C. It serves as a mount point for vVols.
Answer: C
Explanation:
In a VMware vSphere environment utilizing Virtual Volumes (vVols), a Protocol Endpoint (PE) acts as a crucial logical proxy or I/O access point between the ESXi hosts and the storage array.
Unlike traditional VMFS datastores where the host mounts a massive LUN and places all VM files inside it, vVols map individual virtual machine disks directly to native volumes on the FlashArray. Because a single ESXi host could potentially need to communicate with thousands of individual vVol volumes, it would be extremely inefficient to map every single one directly to the host. Instead, the ESXi host mounts the Protocol Endpoint, and the storage array uses this PE to dynamically route the I/O to the correct underlying vVol. On a Pure Storage FlashArray, creating and connecting a PE volume to your ESXi host groups is a mandatory prerequisite for setting up a vVol datastore.
Here is why the other options are incorrect:
It allows for volumes of the same name within host groups (A): Purity OS requires all volume names across the entire FlashArray to be completely unique, regardless of which host group they are connected to or whether a Protocol Endpoint is in use.
It is required to set Host Protocol (C): The host communication protocol (such as iSCSI, Fibre Channel, or NVMe-oF) is determined by the physical host bus adapters (HBAs), network interface cards (NICs), and the configuration of the Host object in Purity, not by the creation of a volume type like a PE.
NEW QUESTION # 49
How would a FlashArray administrator view external latency for write requests for a specific volume?
- A. Health; Network; Select the appropriate protocol; Select the appropriate port
- B. Storage; Volumes; Select the appropriate volume; Details
- C. Analysis; Performance; Volumes; Select the appropriate volume; Select "Write" and Deselect "Read" and "Mirrored Write"
Answer: C
Explanation:
The Analysis Tab: In the Pure Storage FlashArray GUI, the Analysis tab is the primary location for deep-dive performance troubleshooting and historical data visualization. While the Storage tab provides a real-time "at-a-glance" view of a volume, the Analysis tab allows for granular filtering of specific metrics.
Granular Metric Filtering: When troubleshooting latency, it is critical to distinguish between Read and Write operations, as they interact with the Purity operating environment differently (e.g., writes hitting NVRAM vs. reads hitting the Flash modules).
External vs. Internal Latency: Pure Storage differentiates between "Array Latency" (internal processing) and "External Latency" (the time seen by the host). By navigating to Analysis > Performance, an administrator can drill down into the Volumes sub-tab.
Selecting the Volume and Operations: Once a specific volume is selected, the chart typically defaults to a combined view. To isolate "external latency for write requests," the administrator must use the legend/filters to select "Write" while deselecting "Read" and "Mirrored Write" (which refers to synchronous replication traffic in ActiveCluster environments). This provides a clean graph of the round-trip write latency specifically for that volume's host I/O.
Why other options are incorrect: Option B refers to physical port health and hardware status, not volume-level performance. Option C provides basic volume metadata and real-time total latency, but lacks the granular historical filtering (selecting/deselecting specific I/O types) required for detailed performance analysis.
NEW QUESTION # 50
If an NFS client can mount the FA File export shares with the IP address, but not the fully qualified domain name, what is most likely causing the issue?
- A. Issue with the DNS
- B. Issue with the OpenLDAP
- C. Issue with the Active Directory (AD) controller
Answer: A
Explanation:
When an NFS client successfully mounts an export using the target's IP address, it proves that the fundamental network connectivity (routing, firewalls) and the storage protocol layer (NFS export policies, host access permissions) are functioning correctly.
However, if the exact same mount attempt fails when using the Fully Qualified Domain Name (FQDN) of the FlashArray file service, the issue lies entirely with name resolution. The Domain Name System (DNS) is responsible for translating human-readable FQDNs into the IP addresses required for network communication. If the client cannot reach the DNS server, or if the DNS server lacks the correct A or AAAA records for the FlashArray's file Virtual IP (VIP) addresses, the client won't be able to resolve the name to the IP, causing the mount command to fail.
Here is why the other options are incorrect:
Issue with the Active Directory (AD) controller (A): Active Directory is primarily used for directory services, user authentication, and authorization (such as mapping permissions for SMB or NFSv4). While AD environments usually include DNS, an "AD controller issue" in the context of storage protocols usually points to permission denials, not host name resolution failures. Furthermore, since the mount works via IP, basic access is already validated.
Issue with the OpenLDAP (C): Similar to AD, OpenLDAP provides directory services for user mappings (UID/GID) and authentication. It does not perform FQDN-to-IP resolution.
NEW QUESTION # 51

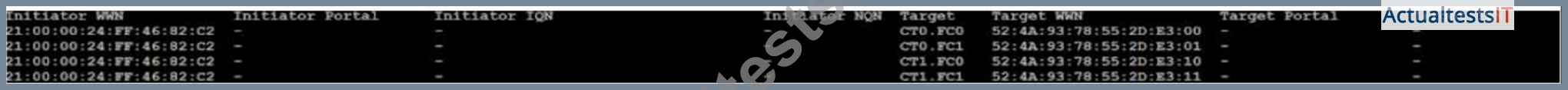

What is indicated by the Fibre Channel (FC) hosts in the following output?
- A. Hosts connected to CT1 are experiencing an outage.
- B. CT1 port WWNs are being presented via CT0.
- C. Host multipathing detected a failed path and redirected workloads.
Answer: B
Explanation:
Purity Active/Active Architecture: Pure Storage FlashArrays use an Active/Active controller architecture. Under normal operating conditions, both controllers (CT0 and CT1) are healthy and independently serve I/O through their respective physical Fibre Channel ports.
The Scenario (Controller Failover): The output provided shows that the host initiator is seeing target WWNs associated with both CT0 and CT1, but the "Target" column indicates they are all being reached via the paths currently managed by one controller or through a specific failover mechanism.
Virtual WWNs and Transparency: In a controller failover or maintenance scenario, Pure Storage utilizes a feature where the WWNs of the "failed" or "offline" controller are logically moved to or presented by the "surviving" controller. This ensures that the host's MPIO (Multi-path I/O) software does not see a permanent "Path Down" error for those specific WWNs, but rather a transition.
Analyzing the Output: When you see CT1 port WWNs (e.g., 52:4A:93:78:55:2D:E3:10) appearing in the connectivity table in a way that implies they are being routed or presented through the physical infrastructure of CT0, it indicates that the array is in a state where one controller is assuming the identity/connectivity of the other. This is a key troubleshooting indicator that the array is likely undergoing a controller reboot, a Purity upgrade, or has experienced a controller hardware failure.
Why A and B are incorrect: * Option A: Multipathing software on the host handles path failures, but it wouldn't cause the array to report WWNs in this specific "cross-presented" manner in a connectivity log.
Option B: If there were a total outage on CT1 without this presentation mechanism, the paths would simply show as "Disconnected" or be missing from the initiator's view entirely.
NEW QUESTION # 52
An administrator is testing FA File Services configurations and unintentionally disabled User Mapping on an active NFS Export.
What happens to file accessibility on that export?
- A. The export will retain accessibility to all existing files but new files can not be created.
- B. The changes to authentication will not be applied until the export is restarted.
- C. The export will lose accessibility to all existing files but have no issue with file creation.
Answer: C
Explanation:
User Mapping in FA File: On a Pure Storage FlashArray, User Mapping is the mechanism that translates identities between different protocols (like mapping a Windows SID to a Unix UID/GID) or between an external directory service (like Active Directory or LDAP) and the local file system permissions.
The Impact of Disabling Mapping: When User Mapping is disabled on an active NFS export, the FlashArray can no longer resolve the identity of the user attempting to access existing files. Because NFS (specifically NFSv3 and NFSv4.1 supported by Pure) relies on these identifiers to verify file ownership and ACLs, existing files-which are tagged with specific owner IDs-become effectively "orphaned" from the perspective of the incoming request.
Access vs. Creation: * Existing Files: Accessibility is lost because the system cannot verify that the user has the rights to read or modify the file without the mapping logic.
New Files: Interestingly, in many "No Mapping" configurations, a user may still be able to create new files (often defaulting to a 'nobody' or 'anonymous' UID depending on the export rules), but they will immediately lose the ability to manage or access them once created because the mapping link is broken.
Real-time Application: Unlike some legacy storage systems that require a service restart, Purity applies export policy changes dynamically. As soon as the "User Mapping" toggle is disabled, the logic is removed from the data path, impacting active sessions immediately.
NEW QUESTION # 53
What is the recommended Maximum Transmission Unit (MTU) size for the replication ports on a FlashArray?
- A. 0
- B. 1
- C. 2
Answer: A
Explanation:
Pure Storage strongly recommends an MTU size of 9000 (Jumbo Frames) for replication networks-such as those used for Asynchronous Replication, ActiveCluster, and ActiveDR-as well as for iSCSI and NVMe/TCP data networks.
A 9000-byte MTU significantly reduces protocol overhead and CPU processing load on the storage controllers by allowing a much larger payload of data to be transmitted inside a single network packet. During heavy replication, this drastically increases throughput and maximizes bandwidth efficiency.
Here is why the other options are incorrect:
1500 (B): While 1500 bytes is the standard default MTU for Ethernet and is exactly what Pure Storage recommends for the management ports (vir0), it is not the recommended optimization for high-throughput replication traffic. (Note: If your network cannot support 9000 end-to-end, 1500 must be used to prevent packet fragmentation, but 9000 remains the best-practice recommendation).
4200 (A): This is an arbitrary number and is not a standard network MTU size used in Pure Storage environments.
NEW QUESTION # 54
An X20R4 array containing 10 x 4.5TB DirectFlash Modules is running out of capacity. The customer found a data pack scheduled for a FlashArray//C array and has inserted it into the array. The customer is unable to admit the new capacity.
What is a possible reason for this?
- A. The new capacity is QLC, which is NOT compatible with an X20R4.
- B. The new capacity is SAS, which is NOT compatible with an X20R4.
- C. The new capacity is TLC, which is NOT compatible with an X20R4.
Answer: A
Explanation:
Hardware Architecture (X vs. C): Pure Storage maintains two primary FlashArray lines: the FlashArray//X (performance-oriented) and the FlashArray//C (capacity-oriented).
Flash Types (TLC vs. QLC):
FlashArray//X (like the X20R4 mentioned in the question) uses TLC (Triple-Level Cell) DirectFlash Modules (DFMs). TLC provides high performance and high endurance, which is necessary for latency-sensitive mission-critical workloads.
FlashArray//C uses QLC (Quad-Level Cell) DirectFlash Modules. QLC provides significantly higher density at a lower cost per GB, but it has different performance and endurance profiles compared to TLC.
Compatibility Constraints: Purity//FA is designed to manage specific flash geometries. QLC modules are not compatible with the //X series arrays. The controller logic and software-defined flash management in an X20R4 are tuned for the voltage and timing characteristics of TLC flash.
The Admission Process: When a new data pack is inserted, the array performs a "handshake." If the controller detects a module type that it is not hardware-qualified to support (in this case, QLC in an //X chassis), it will refuse to admit the capacity to prevent system instability or data integrity issues.
Why Option A is incorrect: Modern FlashArrays (since the //M series) use NVMe over a PCIe backplane for DirectFlash Modules. Pure moved away from SAS (Serial Attached SCSI) for its primary data drives years ago to eliminate the performance bottlenecks associated with the SAS protocol.
Why Option C is incorrect: An X20R4 uses TLC flash. If the data pack were TLC, it would likely be compatible (provided it met the minimum module count and Purity version requirements).
NEW QUESTION # 55
In reviewing space metrics via the Pure Management GUI, a storage manager notices the total reduction rate is much higher than the Data Reduction Rate (DRR).
What is the reason for this?
- A. The total reduction rate includes thin provisioning, while the Data Reduction Rate (DRR) does not.
- B. The total reduction rate includes compression, while the Data Reduction Rate (DRR) does not.
- C. The total reduction rate includes snapshot space, while the Data Reduction Rate (DRR) does not.
Answer: A
Explanation:
Understanding Data Reduction Rate (DRR): DRR is a measure of the effectiveness of Purity's deduplication and compression algorithms. It compares the amount of data written by the host to the amount of physical space actually occupied on the flash media after these processes have occurred.
Calculation: $\text{DRR} = (\text{Deduplication} \times \text{Compression})$.
Understanding Total Reduction: The Total Reduction metric is a broader "efficiency" value. It represents the ratio of the Total Provisioned (logical) space to the Physical space used.
The "Thin Provisioning" Factor: The primary difference between these two numbers is Thin Provisioning.
FlashArrays are 100% thin-provisioned by default. If a customer creates a 100TB volume but the host only writes 1TB of data, the "Total Reduction" will be massive because it counts all that unwritten, "virtual" space as "saved." The DRR, however, only looks at the 1TB that was actually written and calculates how well it was compressed and deduped.
Why Option C is incorrect: Both metrics generally account for the efficiency of snapshots. However, snapshots contribute to DRR through deduplication (since they share blocks with the source volume). The massive gap between DRR and Total Reduction is almost always mathematically attributed to the "unwritten" space provided by thin provisioning.
Key Takeaway: If your DRR is 5-to-1 but your Total Reduction is 50-to-1, it means your data is compressing/deduping well, but you have also provisioned a significant amount of volume space that hasn't been written to yet.
NEW QUESTION # 56
Twelve stretched pods are synchronously replicating between an ActiveCluster (AC) FlashArray pair. A new unstretched pod is created and then is stretched, but the operation fails.
What is the most likely cause of the operation not completing successfully?
- A. The ActiveCluster (AC) pair has reached its stretch pod limit.
- B. The mediator is not available on the FlashArray that the pod is being stretched to.
- C. There is a pod that was deleted and not eradicated.
Answer: A
Explanation:
ActiveCluster Scalability Limits: Pure Storage FlashArrays have specific scalability limits regarding the number of "Active" or "Stretched" pods allowed per array or ActiveCluster pair. While these limits can vary slightly based on the Purity//FA version and the specific hardware model (e.g., //X, //XL, or //m), a common architectural limit in many Purity versions is up to 12 stretched pods.
The Scenario Analysis: In this case, the environment already has 12 stretched pods successfully replicating. When the administrator attempts to stretch a 13th pod, the operation fails because the array has hit the maximum concurrent stretched pod count supported by the Purity operating environment for that configuration.
Stretched vs. Unstretched: A pod exists locally (unstretched) without consuming an ActiveCluster pod "slot" in the same way. The failure specifically occurs during the "stretch" operation, which is the point where the synchronous replication relationship and mediator monitoring are established.
Resolution: To resolve this, the administrator would either need to:
Unstretch or Eradicate an existing pod that is no longer needed to free up a slot.
Check the specific Purity Release Notes for the hardware model to see if a firmware upgrade increases the maximum pod limit (some newer versions support more, but 12 is the classic threshold often tested in professional certifications).
NEW QUESTION # 57
During a test failover using ActiveDR, what content will be presented to the target pod?
- A. The content from the last real fail-over
- B. The content from the last periodic refresh
- C. The content from the undo pod
Answer: C
Explanation:
ActiveDR is Pure Storage's continuous, near-sync replication solution. It differs fundamentally from standard asynchronous replication because it uses a continuous stream of data rather than snapshot-based "periodic refreshes" (which eliminates Option A).
When you perform a test failover in ActiveDR, you do so by promoting the target pod. The target pod becomes writable, allowing your hosts and applications to run against the replicated data without disrupting the ongoing continuous replication from the source array in the background.
When the test is completed, you demote the target pod. To ensure that the data generated during your test failover isn't accidentally lost forever, ActiveDR automatically creates an undo pod at the exact moment of demotion.
If you need to resume that exact test failover scenario or recover the test data, you can re-promote the target pod and instruct ActiveDR to present the content from the undo pod. This unique mechanism allows storage administrators to seamlessly non-disruptively test, pause, and resume DR environments without affecting production protection.
NEW QUESTION # 58
FlashArray sent Alert 51 - Protection Group Replication Delayed.
What steps should be taken?
- A. Temporarily disconnect replication for troubleshooting, verify the size of the snapshot, and check for port errors in the FlashArray GUI.
- B. Check for other open alerts, verify if the replication cabling is correct, and check if Protection Group was disabled.
- C. Verify if there are any other open alerts, check if any other replication jobs are in progress, and verify current replication bandwidth.
Answer: C
Explanation:
Understanding Alert 51: On a Pure Storage FlashArray, Alert 51 signifies that a Protection Group's replication is lagging behind its scheduled completion time. This does not necessarily mean the connection is "down," but rather that the volume of data being sent is exceeding the available throughput or is being queued behind other tasks.
The Triage Process:
Open Alerts: You must check for related alerts (like Alert 20 for "Replication Connection Down") to determine if the delay is caused by a total link failure or just congestion.
Replication Jobs in Progress: Because FlashArray uses a specialized engine to manage replication, having multiple large snapshots from different Protection Groups replicating simultaneously can saturate the "replication pipe." Checking active jobs helps determine if there is a scheduling "traffic jam." Replication Bandwidth: Comparing the current outgoing replication throughput against the historical average or the physical limit of the replication ports helps identify if the delay is due to a sudden increase in Data Change Rate (churn) or a reduction in network performance.
Why Option B is incorrect: If a Protection Group were disabled, replication wouldn't be "delayed"-it would be stopped, which triggers a different alert state. Cabling issues usually result in "Connection Down" alerts rather than just "Delayed" alerts.
Why Option C is incorrect: Disconnecting replication is a destructive troubleshooting step that will only increase the lag and RPO. You should always analyze the existing data flow before breaking the connection.
NEW QUESTION # 59
The administrator needs to remove a volume from a ratcheted protection group.
How can this be accomplished?
- A. Go to the pgroup in the GUI and unlock the pgroup.
- B. Contact Pure Storage Support to help unlock the pgroup.
- C. Unlock the pgroup by using the CLI.
Answer: B
NEW QUESTION # 60
An application engineer reports seeing high latency in their application running in a VMware instance.
What is the best method to determine the source of the latency?
- A. Analyze load metrics in Pure1 for each volume in the user's data path.
- B. Analyze performance charts in vSphere for CPU, Memory, Network, and Storage Path for the user's data path.
- C. Analyze performance in the VM Topology in Pure1 for each component in the user's data path
Answer: C
Explanation:
Within the Pure Storage ecosystem, the absolute best method to troubleshoot and pinpoint the exact source of VMware latency is to use VM Analytics (VM Topology) in Pure1.
VM Analytics is a feature built directly into Pure1 that maps the entire data path from the virtual machine all the way down to the physical FlashArray. It provides a visual topology map detailing the VM, Virtual Disk, ESXi Host, Datastore, and FlashArray Volume. By analyzing performance across this topology, an administrator can instantly identify exactly where the latency is being introduced. For example, you can clearly see if the latency spikes at the ESXi host layer (indicating compute contention) or the network layer, even if the FlashArray volume itself is reporting sub-millisecond latency at the storage level.
Here is why the other options are incorrect:
Analyze load metrics in Pure1 for each volume in the user's data path (C): Looking exclusively at volume-level metrics on the FlashArray will only tell you the latency from the array's perspective. If the latency is being caused by an overloaded ESXi host CPU or a saturated SAN fabric, the FlashArray metrics will look perfectly healthy, and you will fail to identify the source of the problem.
Analyze performance charts in vSphere for CPU, Memory, Network, and Storage Path for the user's data path (B): While vCenter performance charts are useful, they often lack deep storage-array-level context. Pure1's VM Topology is the "best" method because it correlates the vSphere stack data with the native FlashArray telemetry data in a single, unified view, making full-stack root cause analysis much faster.
NEW QUESTION # 61
A customer with an X50R2 array connected to 110V power is due for an upgrade to the latest controller generation.
What is required to allow this upgrade to proceed?
- A. Switch the array to 220v power outlets.
- B. Call support to schedule a power supply replacement.
- C. Transition the array to DC power.
Answer: A
Explanation:
As Pure Storage has iterated through FlashArray generations (moving from //X R2 to R3, R4, and beyond), the power density and performance capabilities of the controllers have increased significantly. Modern high-performance controllers, such as those found in the //X R4 or //XL series, have strict power requirements that often exceed what a standard 110V/120V (Low-Line) circuit can provide.
To support the higher wattage and current draw of modern CPUs and NVRAM modules, Pure Storage requires 200-240V (High-Line) power for its latest generation controllers. If an existing array is currently running on 110V power, it must be migrated to 220V power outlets before the upgrade can proceed. Attempting to run newer, high-spec controllers on 110V power could lead to power supply instability, insufficient cooling performance, or the controllers failing to boot entirely.
Here is why the other options are incorrect:
Call support to schedule a power supply replacement (A): The issue is not a faulty power supply; it is the external electrical infrastructure's inability to provide the necessary voltage/wattage for the new hardware. Replacing the power supply with the same model would not solve the voltage limitation.
Transition the array to DC power (B): While Pure Storage does offer DC power options for specific telco environments, this is not a standard requirement for a typical controller upgrade. Moving to standard high-line AC power (220V) is the standard prerequisite for data center environments.
NEW QUESTION # 62
......
